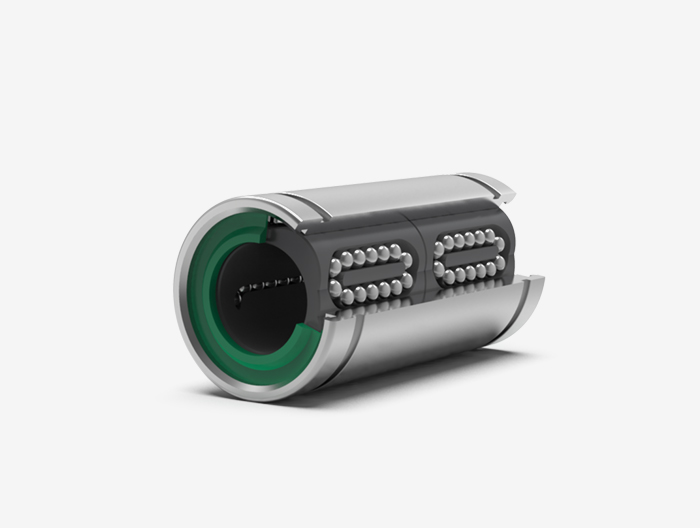

Linear bearing LME 25LUU

Model:LME 25LUU

Brand:TBJ

Linear bearing LME 25LUU d=、D=40、B=82,For more information, please contact the Us, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13485059519

tbjbearing@gmail.com
We can deliver to all countries

Attribute

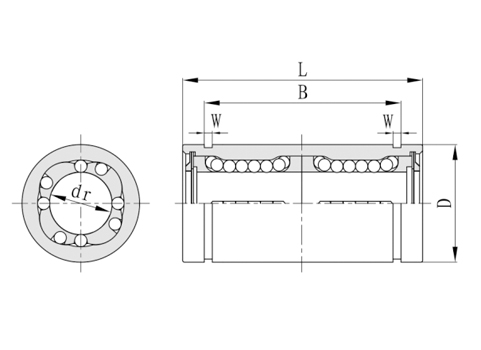

Technical Drawing
Param Print

model

model LME 25LUU
Number of steel ball column 6
weight (g) 440
Maximum radial gap 20

key dimension (mm)

dr 25
Tolerance +0.013/-0.002
D 40
Tolerance 0/-0.013
L 112
Tolerance 0/-0.4
B 82
Tolerance 0/-0.4
W 1.85
D1 38

Eccentricity volume(max)

μm 17

specified load (N)

C 1560
Co 3140
