outline dimension (mm)

d	50
D	110
B	27
γ(min)	2
γ1 (min）	2
Fw	65

specified load (KN)

Cr	127
Cor	113

Rated load min ^-1

Fat lubrication	5000
oiling	6000

bearing symbol

	NU 310 EW U537
NU mould	NU
NJ mould	NJ
NUP mould	NUP

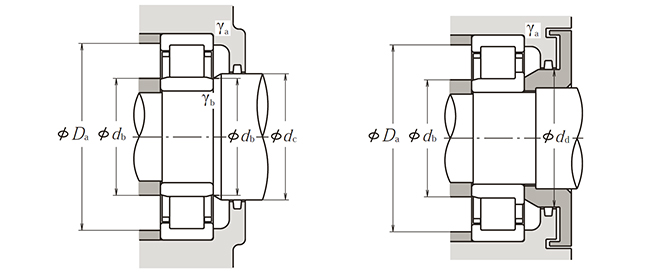

installation size (mm)

da （min）	59
db (min)	59
db (max)	63
dc (min)	67
dd (min)	73
da (max)	101
γa (max)	2
γb (max)	2

weight (kg)

(consult)	1.3
