outline dimension (mm)

d	190
D	400
B	132
γ(min)	5
γ1 (min）	5
Fw	240

specified load (KN)

Cr	1770
Cor	2520

Rated speed min ^-1

Fat lubrication	1300
oiling	1600

bearing symbol

	NU 2338EM
NU mould	NU
NJ mould	NJ
NUP mould	NUP

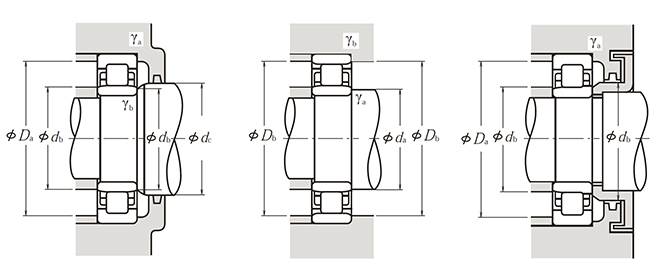

installation size (mm)

da （min）	210
db (min)	210
db (max)	235
dc (min)	248
dd (min)	268
da (max)	380
γa (max)	4
γb (max)	4

weight (kg)

(consult)	86.2
