outline dimension (mm)

d	45
D	85
B	30.2
γ(min)	1.1

specified load (N)

Cr	41500
Cor	33500

Rated load load {kgf}

Cr	4250
Cor	3450

Rated speed min _-1

Fat lubrication	5000
oiling	4300

bearing symbol

	5209
Dust cover type	ZZ
closed type	DDU

Action point distance (mm)

a0	42.5

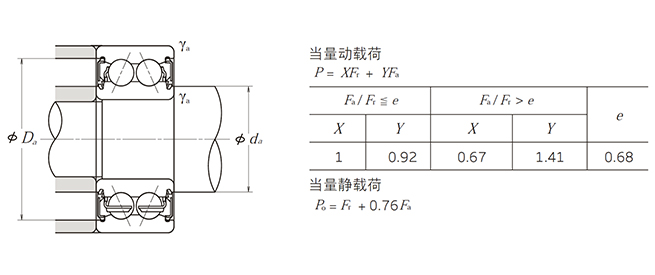

installation size (mm)

da（min）	52
da(max)	55.5
da(max)	78
γa（max）	1
