outline dimension (mm)

d	775
D	1080
B	90
γ(min)	6
γ1(min）	3

Rated load (single column) (KN)

Cr	590
Cor	1700

Rated load (single column) {kgf}

Cr	60500
Cor	174000

Action point location (mm)

a	312.7

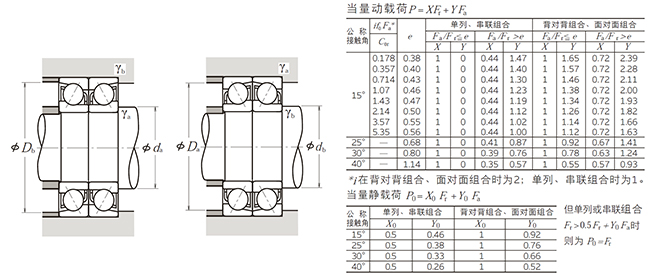

Installation-associated dimensions (mm)

da（min）	836
da(max)	1030
γa（max）	5

weight (kg)

(consult)	274

bearing symbol

single-row	BA775-1
DB assemble	DB
DF assemble	—

Rated load (combined form) (KN)

Cr	960
Cor	3400

Rated load (combined form) {kgf}

Cr	98000
Cor	345000

Point distance of combined form (mm) a ₀

Back combination	625.5
Positive combination	—

Dimdimensions for combined installation (mm)

Db(min)	—
db(max)	1044
γb(max）	2.5
