Small ball bearings and miniature ball bearings R144

Model:R144

Brand:NSK

Small ball bearings and miniature ball bearings R144 d=3.175、D=6.350、B=2.380,For more information, please contact the Us, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13485059519

tbjbearing@gmail.com
We can deliver to all countries

Attribute

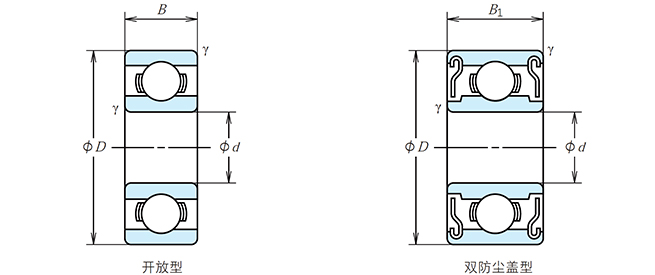

Technical Drawing
Param Print

outline dimension (mm)

d 3.175
D 6.350
B 2.380
B1 2.779
γ(min) 0.1

bearing symbol

open type *R144
Double dust cover type FR144ZZ

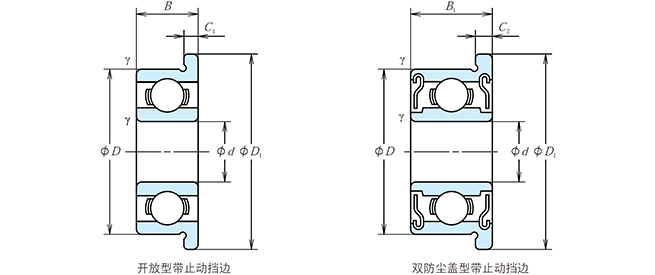

outline dimension (mm)

D1 7.518
C1 0.580
C2 0.790

bearing symbol

With stop movement
stop edge opening type		 FR144
With stop stop edge
double dust cover type		 FR144ZZ
