Outer spherical bearing, bearing seat unit GYE17-KRR-B-VA

Model:GYE17-KRR-B-VA

Brand:FAG

Outer spherical bearing, bearing seat unit GYE17-KRR-B-VA d=17、D=、B=25,For more information, please contact the Us, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13485059519

tbjbearing@gmail.com
We can deliver to all countries

Attribute

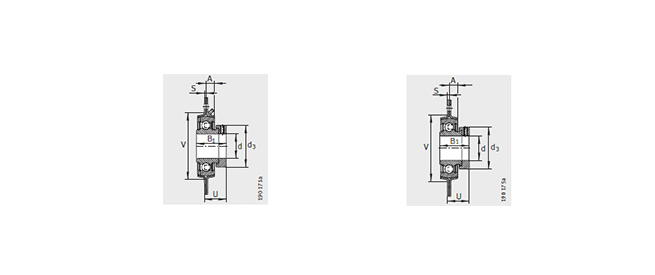

Technical Drawing
Param Print

model

cell RRY17-VA1
bearing block FLAN40-MSB-VA(2 pieces)
External spherical ball bearing GYE17-KRR-B-VA

quality

m
≈kg		 0.19

size mm

d 17
H 81
S 2
N 7.1
B 25
B1 -
J 63.5
d3
max		 -
A 7
U 17.400
V 48

Number of bolt installation holes

n 3

The bearing capacity of the bearing seat

CorG
N		 2700

Basic rated load

live load
Cr
N		 9800
dead load
Cor
N		 4750
