Outer spherical bearing, bearing seat unit GVK109-211-KTT-B-AS2/V

Model:GVK109-211-KTT-B-AS2/V

Brand:FAG

Outer spherical bearing, bearing seat unit GVK109-211-KTT-B-AS2/V d=69.8、D=、B=36,For more information, please contact the Us, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13485059519

tbjbearing@gmail.com
We can deliver to all countries

Attribute

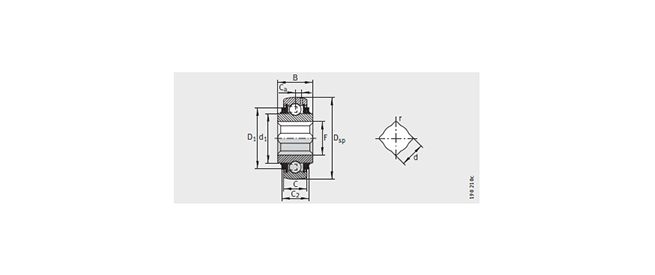

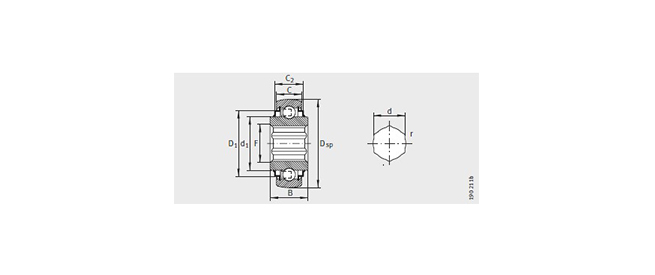

Technical Drawing
Param Print

Axis cross section width

inch 1 9/16
mm 39.6875

model GVK109-211-KTT-B-AS2/V

quality m

≈kg 1.25

size mm

d 39.6875
d bias 1.900
Dsp 100
C 25
C2 29
d1 69.8
F 55.2
D1 85.9
Ca 7.1
B 36
r 2.5

limit speed

nGmin-1 450

Basic rated load

live load
Cr
N		 43500
dead load
Cor
N		 29000

consult

bearing 6214

The width of the axis section

inch 1 9/16
mm 39.6875
