model ZKLDF395

quality

m ≈kg	39

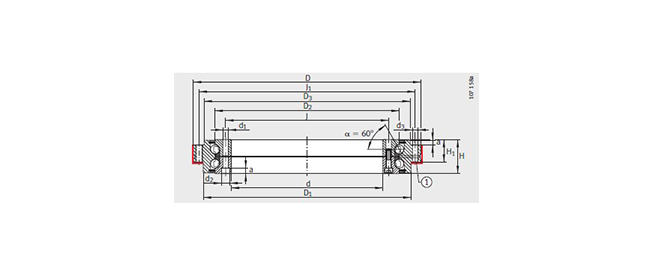

size (mm)

d	395
D	525
H1	5
H2	42.5
D1 max	486
D2 max	450
D3 max	488
J	415
J1	505
a	8.200

inner ring

set bolt d1	9.300
set bolt d2	15
Number of fixed bolts	46

housing washer

set bolt ds	9.300
Number of fixed bolts	45

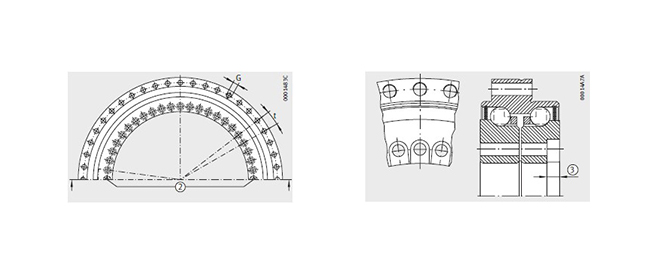

Reversible holes with threads G	M12
Reversible holes with threads quantity	3

Angle t1

quantity ×t	48×7.5°

Torque of bolt tightening

MA Nm	34

Basic rated load

Axial static load Coa N	241000
Radial dynamic load Cr N	1580000

Limit speed 6)

nG min-1	800

Bearings friction torque

MRL Nm	16

rigidity

Support position axial crL kN/μm	4.5
Support position radial crL kN/μm	0.9
Support position Overturning stiffness ckL kN?m/mrad	100
Rolling body components axial crL kN/μm	6.3
Rolling body components radial crL kN/μm	0.9
Rolling body components Overturning stiffness ckL kN?m/mrad	148
