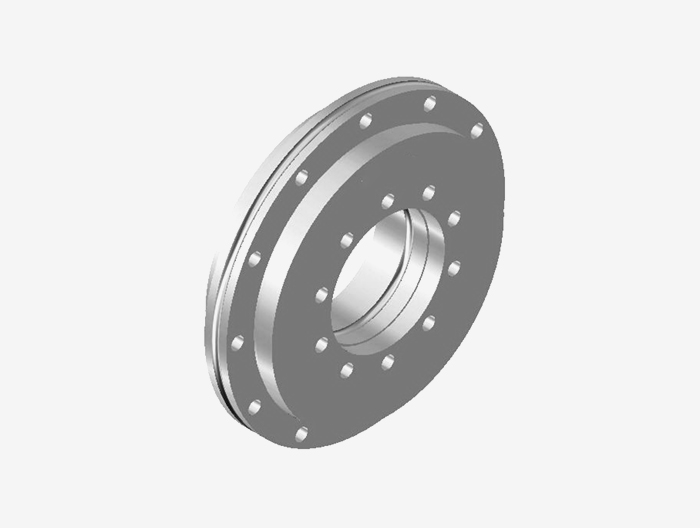

model YRT580

quality

m ≈kg	89

size (mm)

d	580
D	750
h	90
H1	60
H2	30
C	30
D1 max	700
J	610
J1	720

lashing eye

inner ring d1	11.4
inner ring d2	18
inner ring a	11
quantity	46
housing washer ds	11.4
Number of outer rings	42

Angle t1

quantity ×t	48×7.5°

Reversible holes with threads

G	M12
quantity	6

Torque of bolt tightening

MANm	68

Basic rated load

Axial dynamic load Ca N	390000
Axial static load Coa N	3600000
Radial dynamic load Cr N	211000
Radial static load Cor N	820000

Limit speed 6)

nG min-1	60

Bearings friction torque

MRL Nm	140

rigidity

Support position axial crL kN/μm	6.9
Support position radial crL kN/μm	9
Support position Overturning stiffness ckL kN?m/mrad	380
Rolling body components axial crL kN/μm	42.1
Rolling body components radial crL kN/μm	17.400
Rolling body components Overturning stiffness ckL kN?m/mrad	2062
