model YRTS460

quality

m ≈kg	45

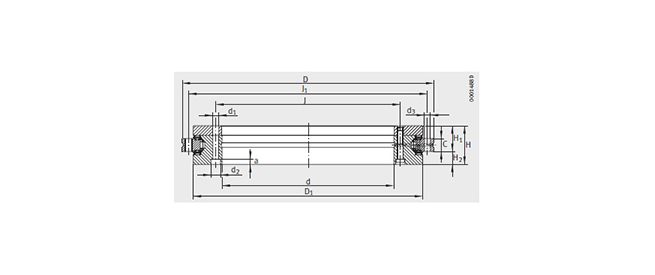

size (mm)

d	4600-0.023
D	6000-0.023
h	70
H1	46
H2	24
C	22
D1 max	560
J	482
J1	580

lashing eye

inner ring d1	9.300
inner ring d2	15
inner ring a	8.200
quantity	46
housing washer ds	9.300
Number of outer rings	45

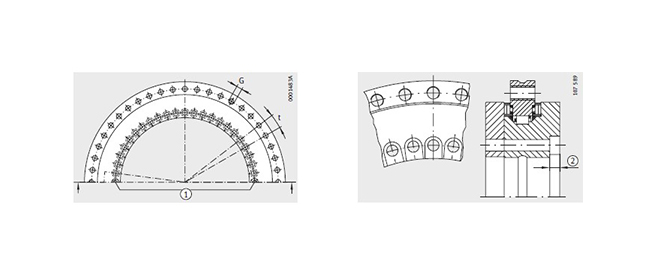

Angle t1

quantity ×t	48×7.5°

Reversible holes with threads

G	M12
quantity	3

Torque of bolt tightening

MANm	34

Basic rated load

Axial dynamic load Ca N	221000
Axial static load Coa N	1690000
Radial dynamic load Cr N	168000
Radial static load Cor N	570000

limit speed

nG min-1	560

Rotational mass moment of inertia

inner ring MM kg·cm2	15738
housing washer MM kg·cm2	7379

rigidity

Support position axial crL kN/μm	8.9
Support position radial crL kN/μm	1.8
Support position Overturning stiffness ckL kN?m/mrad	280
Rolling body components axial crL kN/μm	25.4
Rolling body components radial crL kN/μm	9.5
Rolling body components Overturning stiffness ckL kN?m/mrad	843
