model RTC200

quality

m ≈kg	9.300

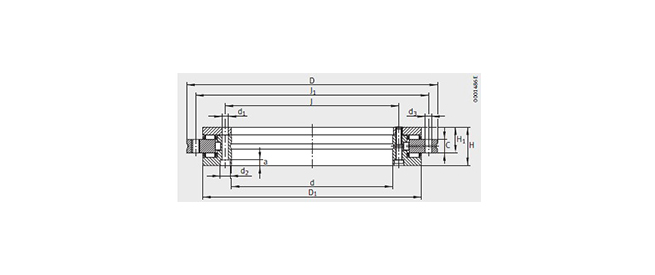

size (mm)

d	200
D	300
h	45
H1	30
C	15
D1 max	274
J	215
J1	285

lashing eye

inner ring d1	7
inner ring d2	11
inner ring a	7
quantity	45
housing washer ds	7
Number of outer rings	48

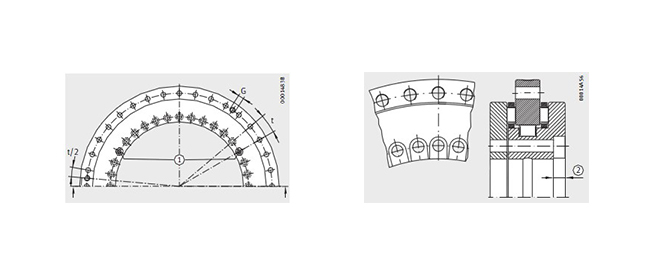

Angle t1

quantity ×t	48×7.5°

Reversible holes with threads

G	M6
quantity	3

Torque of bolt tightening

MANm	14

Basic rated load

Axial dynamic load Ca N	120000
Axial static load Coa N	765000
Radial dynamic load Cr N	81500
Radial static load Cor N	220000

Limit speed 6)

nG min-1	260

Bearings friction torque

MRL Nm	11

rigidity

Support position axial crL kN/μm	1.8
Support position radial crL kN/μm	3.5
Support position Overturning stiffness ckL kN?m/mrad	23
Rolling body components axial crL kN/μm	12.2
Rolling body components radial crL kN/μm	5.8
Rolling body components Overturning stiffness ckL kN?m/mrad	88
