model ZARF40100-L-TV

quality

m ≈kg	1.45

size (mm)

d	40
D	100
H	-
H1	-
H2	70
H3	51
C	18
C1	10
D1	65
D2	50
D3	63
B	11
B1	27
B2	12
r min	0.3
r1 min	0.6
d1	3.2
J	80

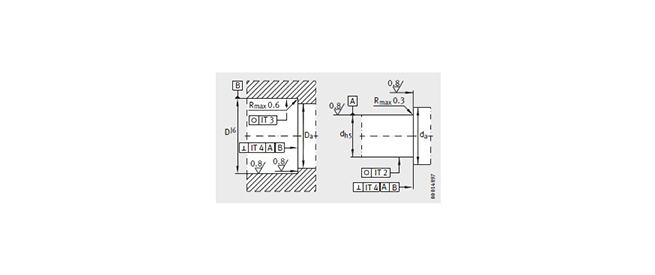

installation size

Da max	66
da min	48

Basic rated load

Axial dynamic load Ca min	59000
Axial static load COa min	163000
Radial dynamic load Cr min	27500
Radial static load Cor min	53000

limit speed

nGoil min-1	4400
nGfat min-1	1600

bearing friction

moment MRL Nm	1

rigidity

axial caL N/μm	2800

axial

move up and down	1
