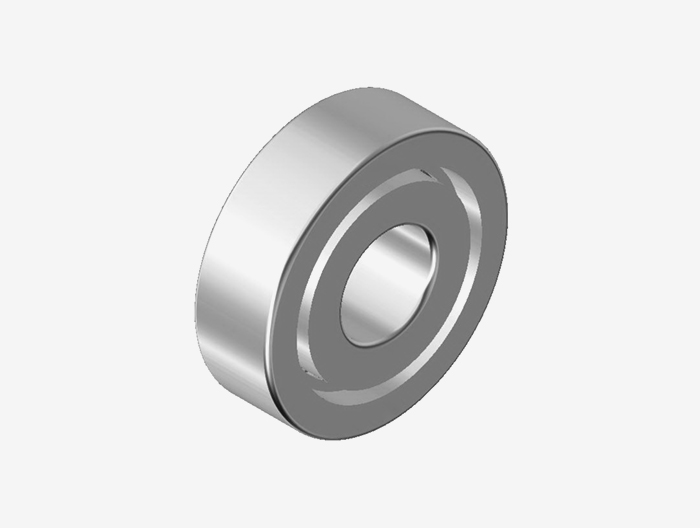

model ZKLN50110-2RS2)

quality m

≈kg	2.5

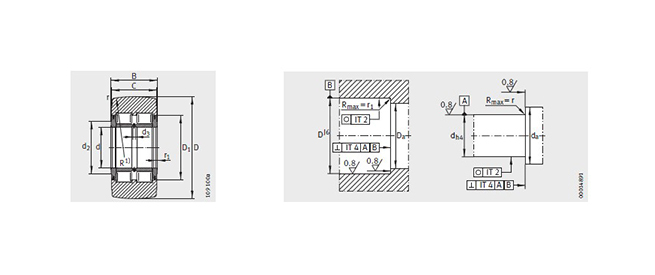

size mm

d0-0.005	50.000
D0-0.01	110.000
B0-0.25	54
d1	80
r min	0.6
r1 min	0.6

installation size mm

Da max	98
da min	63

Basic rated load axial

live load Ca N	113000
dead load Coa N	250000

limit speed

nGfat min-1	1200

Bearings friction torque

MRL Nm	2.6

Stiffness axial

CaL N/μm	1400

Overturning stiffness

cKL Nm/mrad	1500

mass mement of inertia

Mm kg·cm2	15.2

Axial runout

μm	2.5

Recommended INA locking nuts must be ordered separately

Model 1	ZMA50/75
Model 2	AM50
Locking torque MA Nm	150
Axial preload N	29436
