model ZKLF3080-2RS-2AP

quality m

≈kg	1.56

size mm

d0-0.005	30
D0-0.01	80
B0-0.5	56
d1	45.5
r min	0.3
r1 min	0.6
J	63
d2	6.8
b	47
I	3

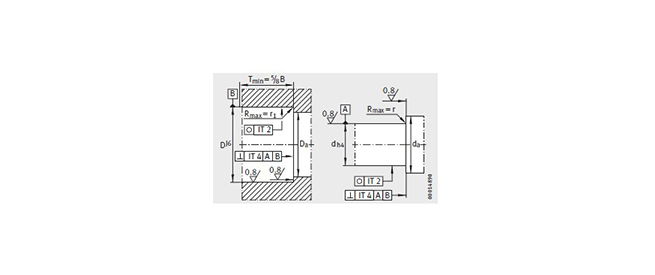

installation size mm

Da max	53
da min	40

set bolt

DIN912-10.9 specifications	M6×70
quantity	11

angle t

quantity ×t	12×30°

Basic rated load axial

live load Ca N	47500
dead load Coa N	127000

limit speed

nGfat min-1	2200

Bearings friction torque

MRL Nm	0.75

Stiffness axial

CaL N/μm	1500

Overturning stiffness

cKL Nm/mrad	620

mass mement of inertia

Mm kg·cm2	1.46

Axial runout

μm	2.5

Recommended INA locking nuts must be ordered separately

Model 1	ZMA30/52
Model 2	AM30
Locking torque MA Nm	32
Axial preload N	10451
