model ZKLR1035-2Z

quality m

≈kg	0.05

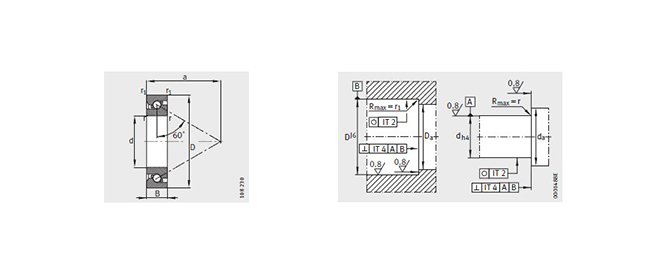

size mm

d	10-0.008
A1	35
A2	35
D+0.03-0.01	28.14
B0-0.25	16
d1	14.7
r min	0.3
d2	4.5
b	-
m	26
n	26
M	-
H?	17.5
da	12.4
Dai	22
daa	26

set bolt

DIN912 specifications	M4
quantity	4

Basic rated load radial

live load Cr N	7400
dead load Cor N	3600

Basic rated load axial

live load Ca N	2550
dead load Coa N	2420

limit speed

nGfat min-1	5100

Recommended INA locking nuts must be ordered separately

MRL Nm	0.12
model	26
Locking torque MA Nm	0.007

Stiffness axial

CaL N/μm	7

mass mement of inertia

Mm kg·cm2	ZM10

Axial runout

μm	6
