No eccentric sleeve

model	-

quality m

≈kg	-

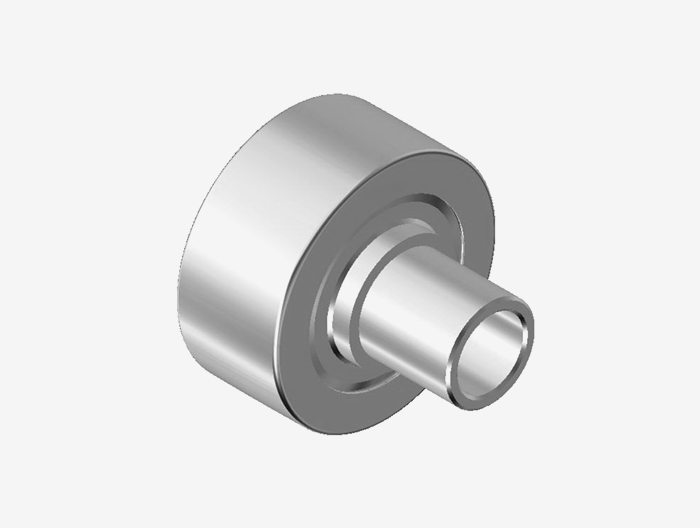

With eccentric sleeve

model	NUKRE35

quality m

≈kg	177

X-life	-

size mm

D	35
d1 h7	16
B	52
B1	22.6
B2	29.5
B3	-
C	18
C1	3.8
r min	0.6
d2	27.6
d3	-
G	M16×1.5
lG	17
W	8
eccentric bushing de h9	20
eccentric bushing Be	12
eccentric bushing e	1

Pressed fit

grease fitting	NIPA2X7.5

tightening torque

MA Nm	58

Basic rated load N

live load Crw	15300
dead load Corw	18700
live load Frper	8500
dead load Forper	16800

Fatigue limit load

Curw N	2430

speed

nDG min-1	6500
