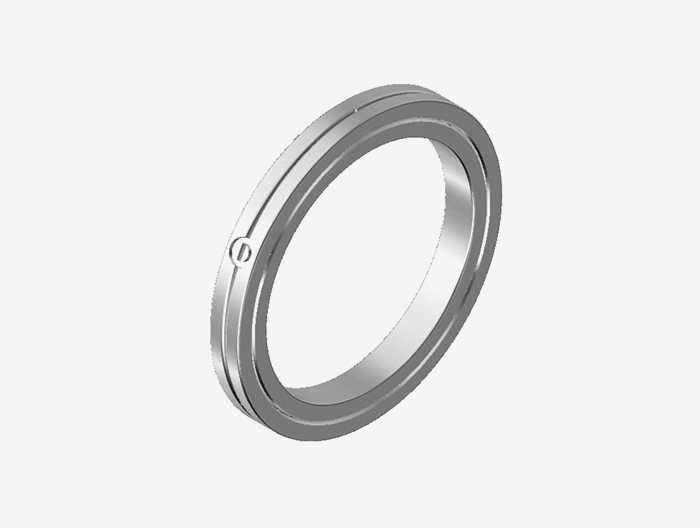

model SX011880 position quality m
≈kg 24

size mm

DM	450
d1 K6	400.000
Da h6	500.000
H	46±0.15
h E8	46.000
da	449
D1	451
r min	2.1
S	2.5

Operating accuracy

radial	0.03
axial	0.01

Normal clearance

end-play min	0.01
end-play max	0.05
Axial tilt clearance min	0.02
Axial tilt clearance max	0.1

Small gap RLO

radial play max	0.005
preload max	0.01

preload VSP

min	0.005
max	0.025

Basic rated load axial

live load CaN	385
dead load Coa N?	180

Basic rated load radial

live load Cr N	275
dead load Cor N	720

Limit speed with normal clearance

With ordinary clearance nGoil min-1	340
With ordinary clearance nGfat min-1	170

Limit speed with preload

With preloading nGfat min-1	170
With preloading nGoil min-1	85

Same as the ISO18 size series

size	61880
