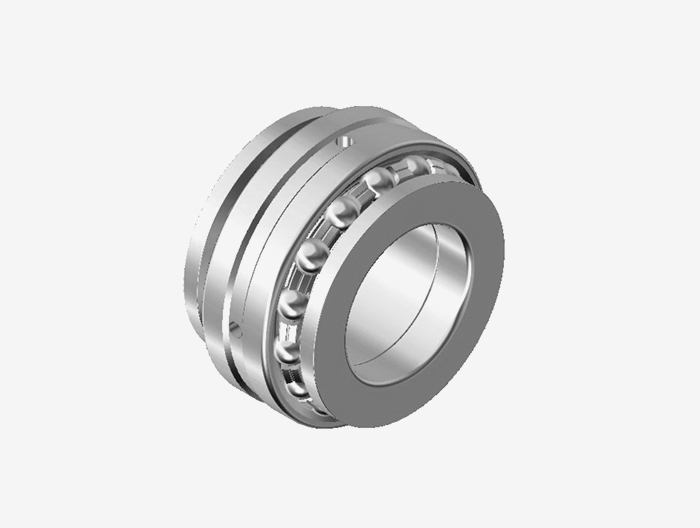

Bidirectional thrust angle contact ball bearing 234752-M-SP

Model:234752-M-SP

Brand:FAG

Bidirectional thrust angle contact ball bearing 234752-M-SP d=354、D=400、B=164,For more information, please contact the Us, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13485059519

tbjbearing@gmail.com
We can deliver to all countries

Attribute

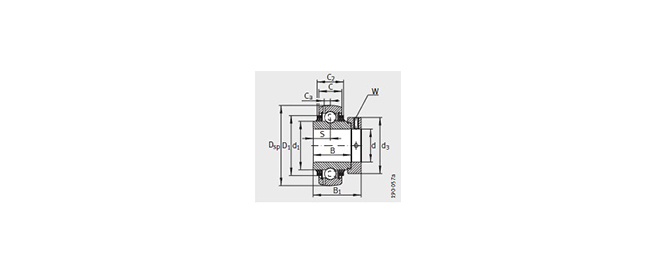

Technical Drawing
Param Print

Same as the ISO18 size series

model 234752-M-SP

quality m

≈kg 54.1

size mm

d 269
D 400
B 164
C 82
d1 354
B1 41
r
min		 4
r1
min		 1.5
ds 9.5
ns 17.7

installation size mm

da
h12		 317.5
Da
H12		 374.5
ra
max		 3
ra1
max		 1.5

Basic rated load N

live load
Ca		 400000
dead load
C0a		 1680000

Fatigue limit load

Cua
N		 83000

limit speed

nGfat
min-1		 1400
nGoil
min-1		 1900
