Spring design

Plastic spring model	HFL0615-KF-R
Steel spring model	HFL0615-R

quality m ≈kg	4

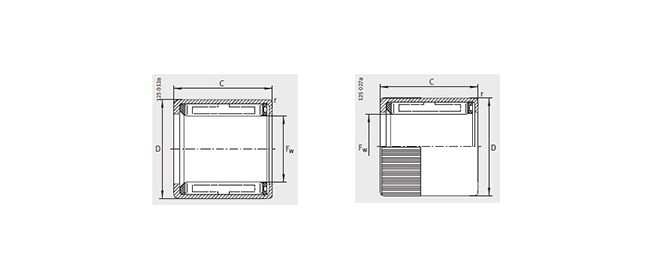

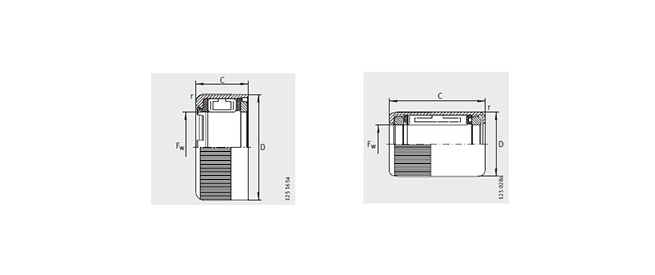

size mm

Fw	6
D	10
C -0.3	15
r min	0.3

Permissible torque Md per Nm	0.6

limit speed

nGW min–1	23000
nGA min–1	13000

Permissible radial load1) Fr max N	110
limit load (Fr·n)max1) N/min	18000

Basic rated load ²

live load Cr N	-
dead load Cor N	-

Fatigue limit load Cur/N	-
