model

bearing	24138-E1-K30
X-life	XL
withdrawal sleeve	AH24138

quality m

bearing ≈kg	41.4
withdrawal sleeve ≈kg	4.37

size mm

d1H	180
d	190
D	320
B	128
r min	3
D1 ≈	271.6
d2 ≈	217.5
ds	6.3
ns	12.2
a ≈	13
b	18
screw thread d2G	M200×3
I	146

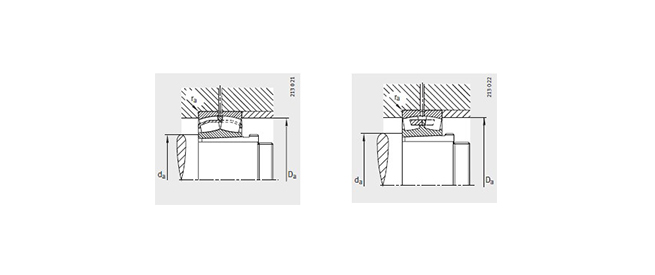

installation size mm

da min	204
Da max	148
ra max	2.1

Basic rated load N

live load Cr	445000
dead load Cor	450000

Calculation coefficient

e	0.34
Y1	1.99
Y2	2.96
Y0	1.94

Fatigue limit load Cur/ N	40500
limit speed nG /min–1	4300
Reference speed nB/min–1	3550
