model

bearing	NJ2232-E-M1
X-life	XL
L-shaped inclined guard ring	HJ2232-E

quality m

bearing ≈kg	23.9
L-shaped inclined guard ring ≈kg	1.56

size mm

d	160
D	290
B	80
r min	3
r1 min	3
s1)	-
E	261
F	193
D1 ≈	251.1
d1 ≈	205.5
B1	12
B2	24.5
B3	-

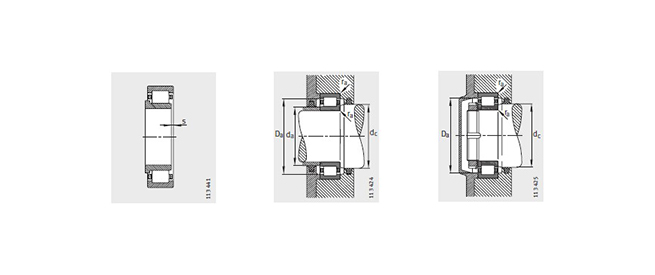

installation size mm

da min<	174
da max	-
dc min	210
Da max<	276
ra max	2.5

Basic rated load N

live load Cr	940000
dead load Cor	1170000

Fatigue limit load Cur/N	171000
limit speed nG/min–1	3800
Reference speed nB/min–1	1670
