model 1309-K-TVH-C3 quality m
≈kg 0.939

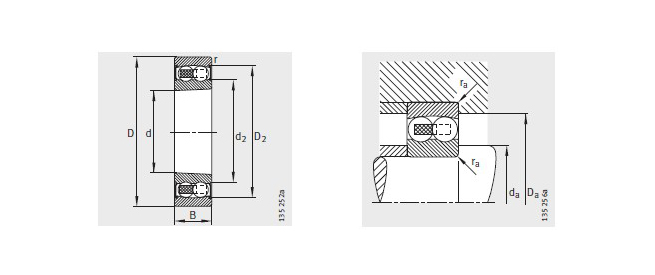

size mm

d	45
D	100
B	25
r min	1.5
D1 ≈	84.1
D2 ≈	-
d1 ≈	64.1
d2 ≈	-

installation size mm

da min	54
Da max	91
ra max	1.5

Basic rated load N

live load Cr	38500
dead load Cor	12600

Calculation coefficient

e	0.25
Y1	2.5
Y2	3.87
Y0	2.62

Fatigue limit load Cur/ N	780
limit speed nG /min–1	7500
Reference speed nB/min–1	9300
