angular contact ball bearing 3315

Model:3315

Brand:FAG

angular contact ball bearing 3315 d=75、D=160、B=68.3,For more information, please contact the Us, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13485059519

tbjbearing@gmail.com
We can deliver to all countries

Attribute

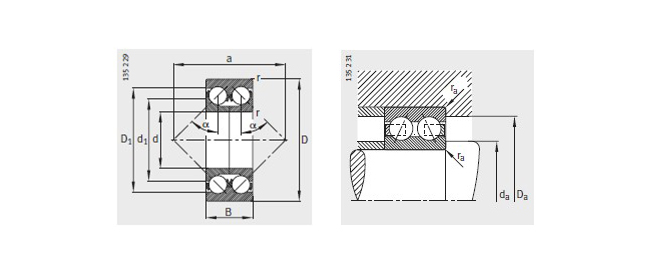

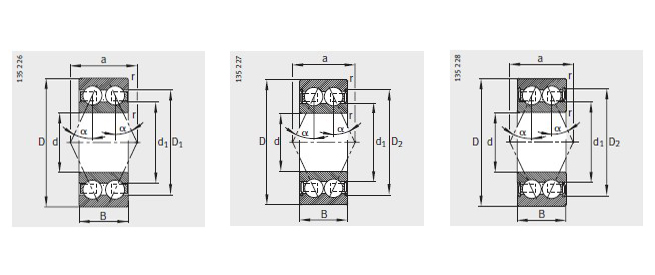

Technical Drawing
Param Print
model 3315 quality m
≈kg 6.07

size mm

d 75
D 160
B 68.3
r
min		 2.1
D1 ≈ 141.2
D2 ≈ -
d1≈ 105.5
a
≈		 117

installation size mm

da
min		 87
Da
max		 148
ra
max		 2.1

Basic rated load N

live load
Cr		 163000
dead load
Cor		 193000

Fatigue limit load
Cur/ N		 9700
limit speed
nG /min–1		 3800
Reference speed
nB/min–1		 4350
