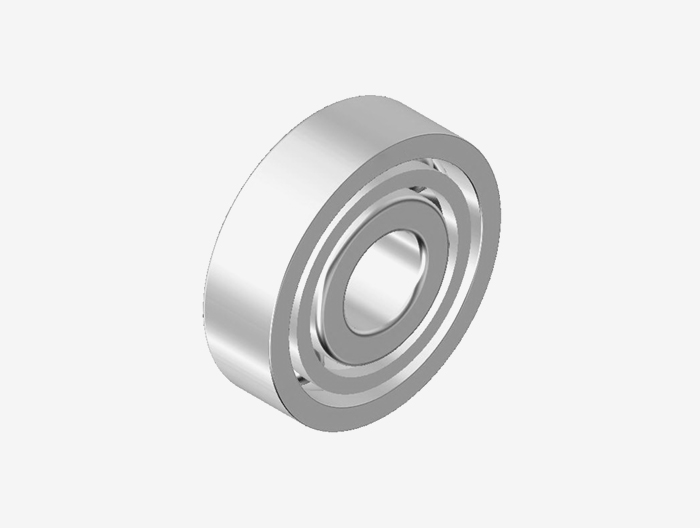

angular contact ball bearing 7322-B-TVP

Model:7322-B-TVP

Brand:FAG

angular contact ball bearing 7322-B-TVP d=110、D=240、B=50,For more information, please contact the Us, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13485059519

tbjbearing@gmail.com
We can deliver to all countries

Attribute

Technical Drawing
Param Print
model 7322-B-TVP X-life XL quality m
≈kg 9.74

size mm

d 110
D 240
B 50
r
min		 3
r1
min		 1.1
D1 ≈ 191.5
d1 ≈ 161.9
a
≈		 98

installation size mm

da
min		 124
Da
max		 226
Db
max		 233
ra
max		 2.5
ra1
max		 1

Basic rated load N

live load
Cr		 250000
dead load
Cor		 245000

Fatigue limit load
Cur/ N		 12500
limit speed
nG /min–1		 3400
Reference speed
nB/min–1		 3150
