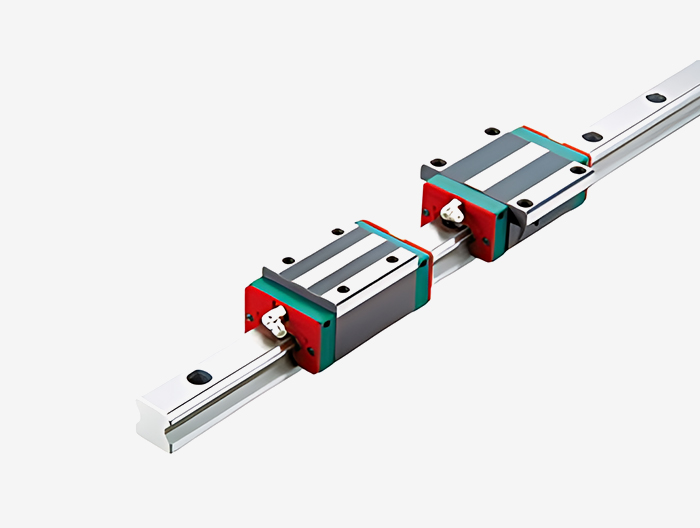

Model:QHW45CA
Brand:HIWIN
| Rail model | QHW45CA |
|---|---|
| Special processing of slider | None |
| Number and type of sliders | single |
| Rail fixing method | Locked |
| Rail length L | 780 |
| L computational formula | L=(n-1)×P+2×E n=1,2,3.... |
| Special processing of guide rails | None |
| Pre-pressurization grade | No pre-pressurization (ZO) |
| accuracy class | common (C) |
| Dust protection equipment grade | Standard dust protection equipment |
| Dust protection equipment | Standard (oil scraping plate + dustproof plate) |
| Special selection | None |
| RC reinforced bolt cover | None |

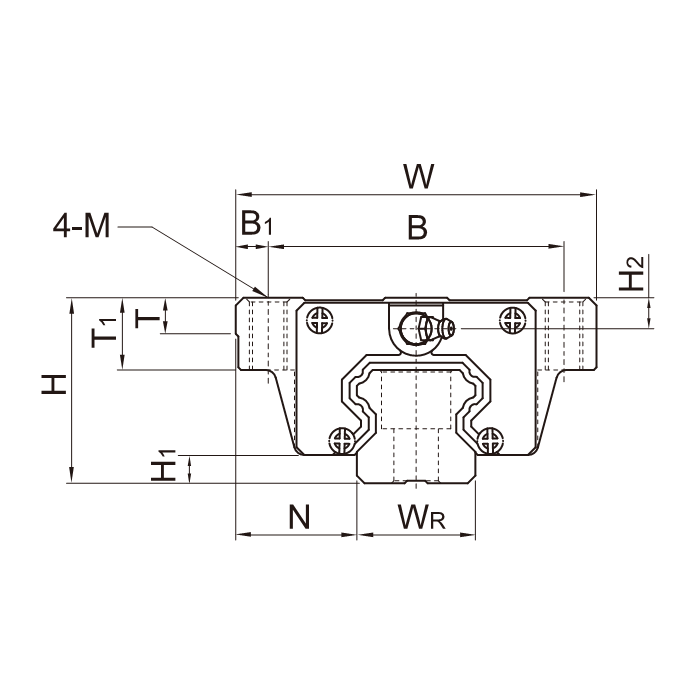

| Component size | |
| H | 60 |
| H1 | 9.2 |
| N | 37.5 |
| Slider size | |
| W | 120 |
| B | 100 |
| B1 | 10 |
| C | 80 |
| L | 139.4 |
| L1 | 97 |

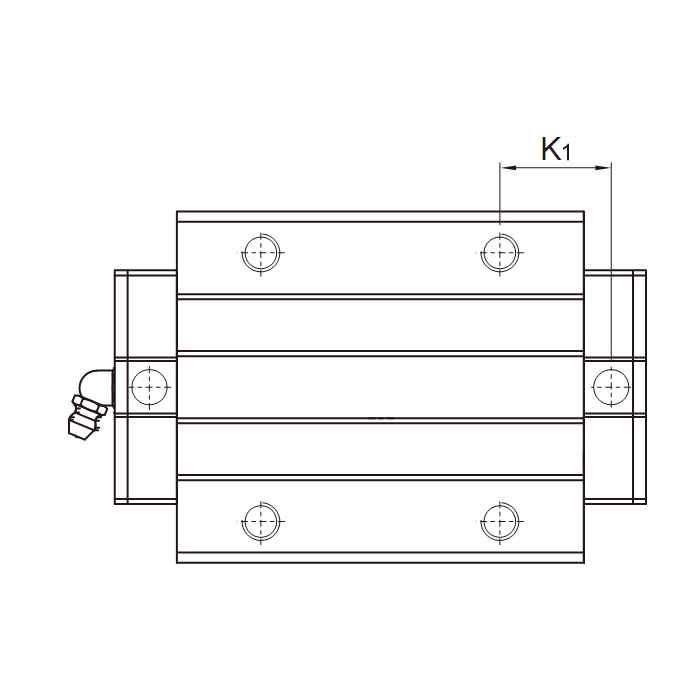

| K1 | 13 |
| K2 | 10 |
| G | 12.9 |
| M | M12 |
| T | 15.1 |
| T1 | 22 |
| H2 | 8.5 |
| H3 | 10 |

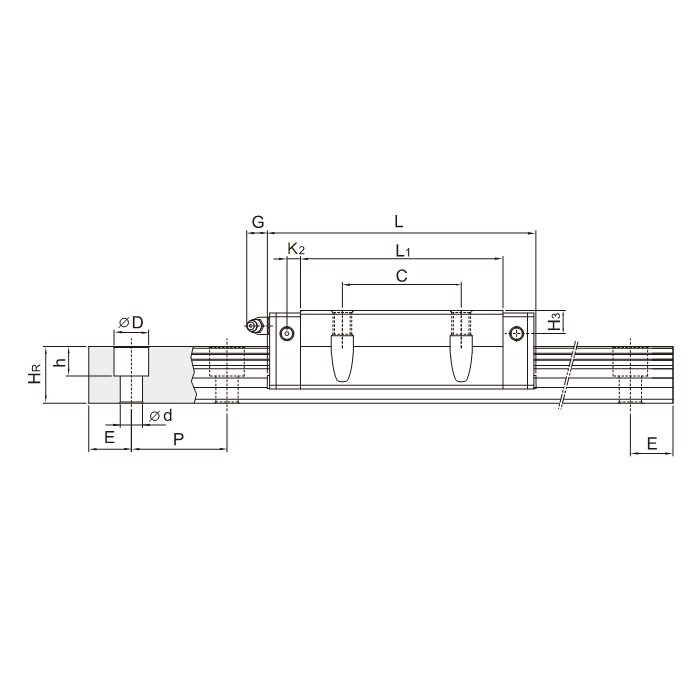

| Rail dimensions | |
| WR | 45 |
| HR | 38 |
| D | 20 |
| h | 17 |
| d | 14 |
| P | 105 |
| Standard end distance E | 22.5 |
| Actual end distance | 22.5 |
| Number of bolt holes n | 8 |
| Rail fixing bolt | M12x35 |
| Rated dynamic load C | 89.21 |
| Rated static load Co | 94.81 |

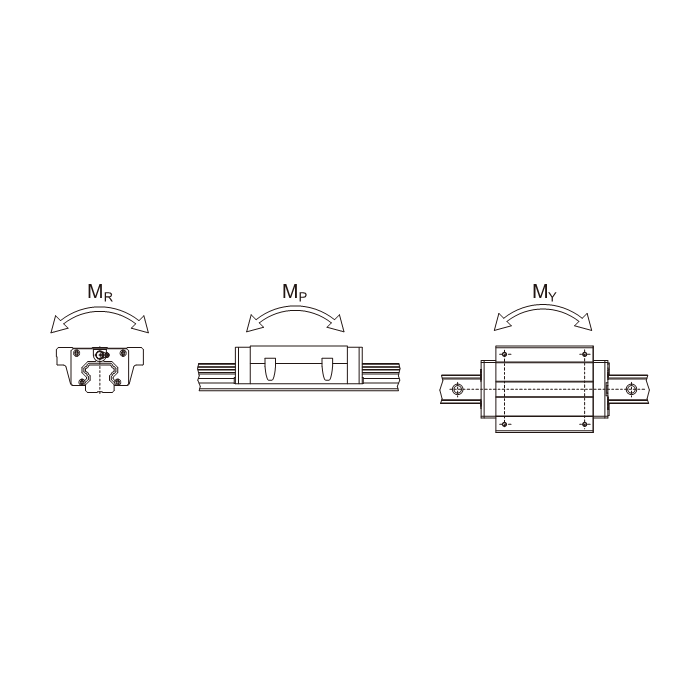

| Rated static moment MR | 1.83 |
| Rated static moment MP | 1.38 |
| Rated static moment MY | 1.38 |
| Slider weight | 2.79 |
| Rail weight | 10.41 |
