model

model	3314

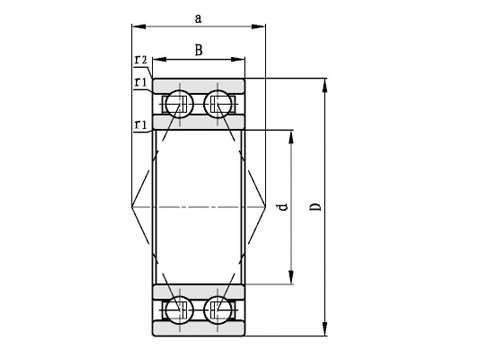

key dimension (mm)

d	70
D	150
B	63.5
r1、2min	2.1

specified load (KN)

Cr	147
Cor	173

Limit of rotation speed (rpm)

Grease	2800
Oil	3800

Other dimensions

d1≈	99.2
D1≈	131

Distance of the bearing load center position(mm)

a	101

installation size (mm)

da min.	82
Da max.	138
ra max.	2

weight (kg)

Approx	5.05
