diameter of axle

da	140

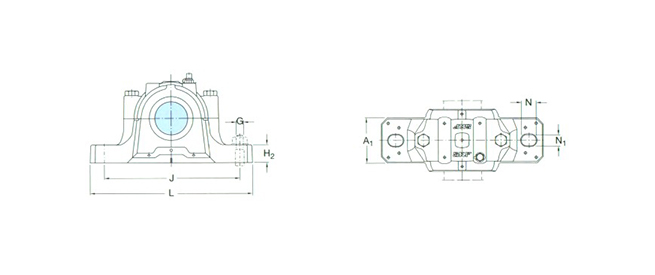

bearing block

A	205
A1	150
H	302
H1	150
H2	50
J	420
L	500
N	42
N1	35
G	30

quality	40

model

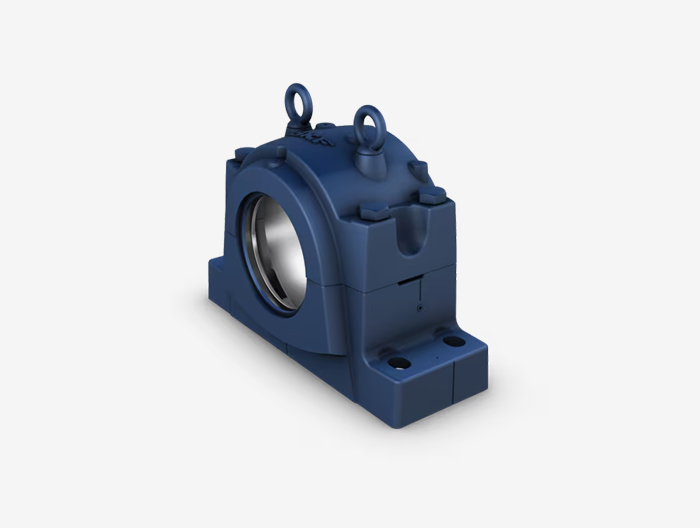

Bearing seat with seals on both sides	SNL228TS
Component bearing seat	SNL528
seal components	TSN228S
end cap	ASNH528

diameter of axle

da	160
db	175

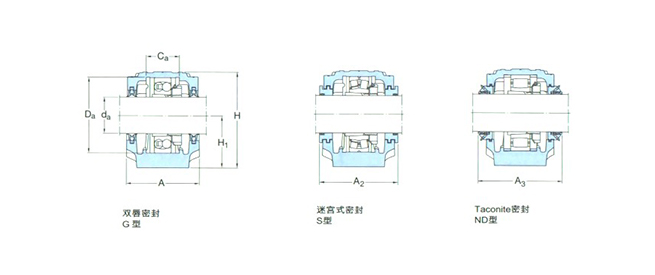

Hole

Ca	114
Da	290

Total width of the attached seal

A2	254
A3	325

Applicable bearings and related parts

Automatic centering ball bearing spherical roller bearing	22232CC/W33
Positioning rings 2 per bearing seat	FRB17/290
Automatic centering ball bearing spherical roller bearing CARB bearings	23232CC/W33
Positioning rings 2 per bearing seat	FRB5/290
