diameter of axle

da	40

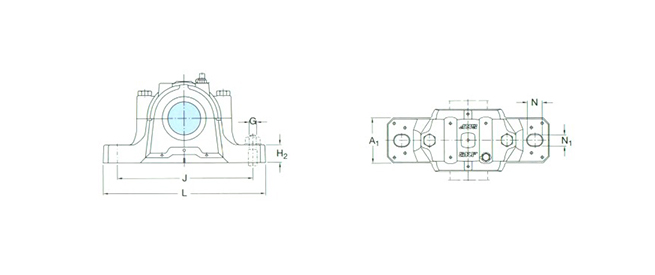

bearing block

A	85
A1	60
H	108
H1	60
H2	25
J	170
L	205
N	20
N1	15
G	12

quality	2.75

model

Bearing seat with seals on both sides	SNL208TG
Component bearing seat	SNL208-307
seal components	TSN208G
end cap	ASNH510-608

diameter of axle

da	40
db	50

Hole

Ca	41
Da	90

Total width of the attached seal

A2	102
A3	167

Applicable bearings and related parts

Automatic centering ball bearing spherical roller bearing	-
Positioning rings 2 per bearing seat	-
Automatic centering ball bearing spherical roller bearing CARB bearings	-
Positioning rings 2 per bearing seat	-
