diameter of axle

da	70

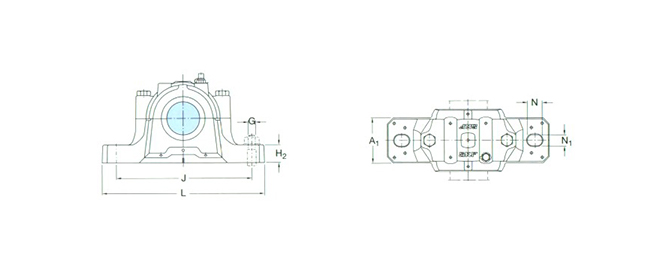

bearing block

A	120
A1	90
H	177
H1	95
H2	32
J	260
L	315
N	28
N1	22
G	20

quality	9.5

model

Bearing seat with seals on both sides	SNL516TS
Component bearing seat	SNL516-613
seal components	TSN516S
end cap	ASNH516-613

diameter of axle

da	75

Hole

Ca	61
Da	150

Total width of the attached seal

A2	143
A3	210

Applicable bearings and related parts

Automatic centering ball bearing spherical roller bearing	1217K
tapered adapter-sleeve	H217
Positioning rings 2 per bearing seat	FRB16.5/150
Automatic centering ball bearing spherical roller bearing CARB bearings	2217K
tapered adapter-sleeve	H317
Positioning rings 2 per bearing seat	FRB12.5/150
