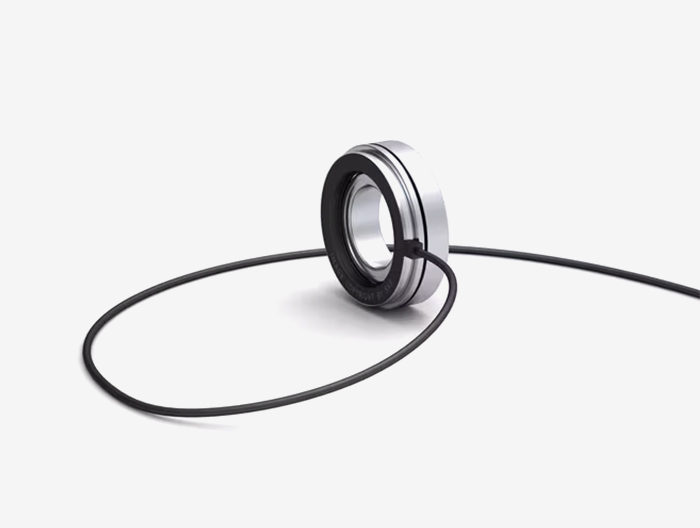

basic size

d	20
D	47
B	14

Basic rated load

trends C	13.5
static state Co	6.55

Fatigue load limit Pu	0.28
limit speed	10000

Sensor

Pulse number	48
Cycle accuracy	±3
Phase shift accuracy	90±30

quality	0.15
model	BMB-6204/048S2/EA002A

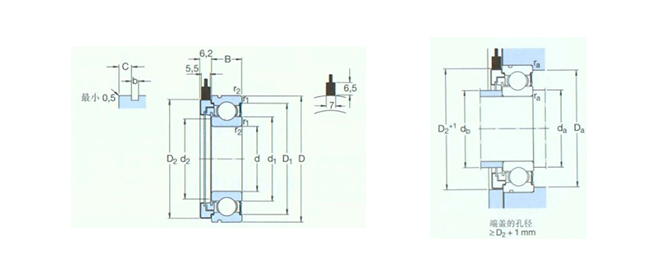

size

d	20
d1 ≈	28.5
d2	26.4
D1 ≈	40.6
D2	46.4
b	1.35
C	2.06

Shoulder gear and chamfer size

r1,2 min	1
da min	25
db min	25
db max	26.3
Da max	42

end-play

ra max	1
min	13
max	28
