Basic size of mm

d	150
D	270
B	45

The basic rated load is kN

trends C	174
static state Co	166

Fatigue load limit, Pu	4.9

Rated rotation speed is r/min

Refer to the speed	5000
limit speed	3200

quality kg	10.1

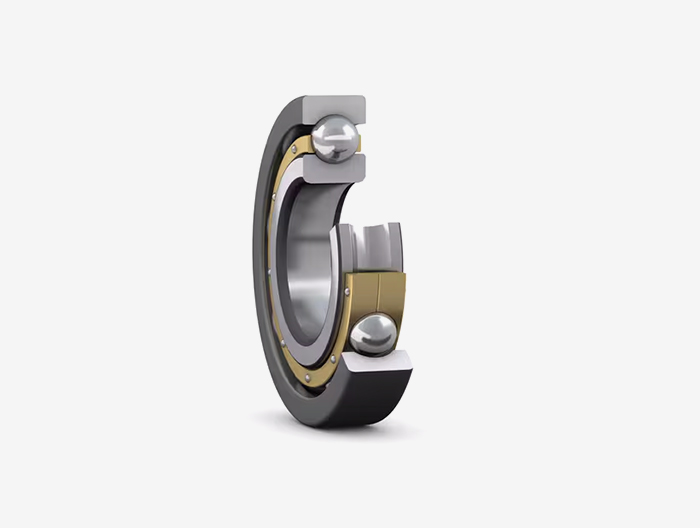

model	6230/P53VL0241

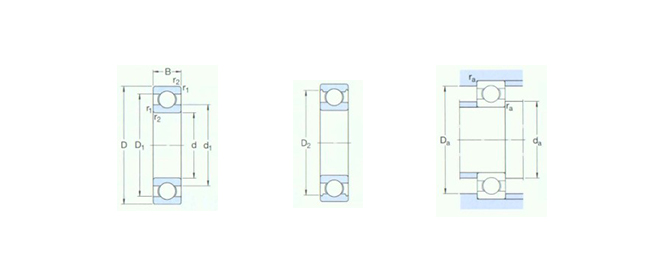

Dimensions are mm

d	150
d1 ～	190
D1 ～	229
D2 ～	-
r1,2 min	3

Shoulder gear and chamfer size mm

da min	164
da max	-
da min	235
da max	256
ra max	2.5

Calculation coefficient

kr	0.025
fo	15
