Basic size of mm

d	100
D	215
B	47

The basic rated load is kN

trends C	174
static state Co	140

Fatigue load limit, Pu	4.75

Rated rotation speed is r/min

Refer to the speed	6700
limit speed	6000

quality kg	8.55
model	6320M/C3VL0241

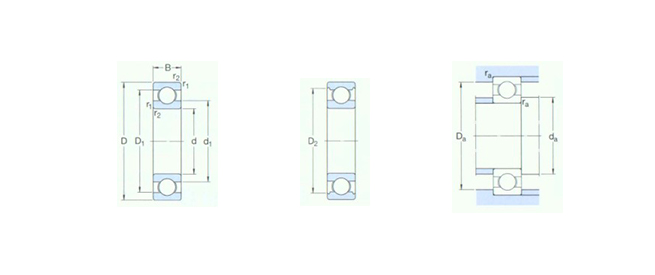

Dimensions are mm

d	100
d1 ～	135
D1 ～	181
D2 ～	186
r1,2 min	3

Shoulder gear and chamfer size mm

da min	114
da max	-
da min	191
da max	201
ra max	2.5

Calculation coefficient

kr	0.03
fo	13
