Basic size of mm

d	70
D	110
B	20

The basic rated load is kN

trends C	39.7
static state Co	31

Fatigue load limit, Pu	1.32

Rated rotation speed is r/min

Refer to the speed	16000
limit speed	9000

quality kg	0.57
model	6014/HC5C3

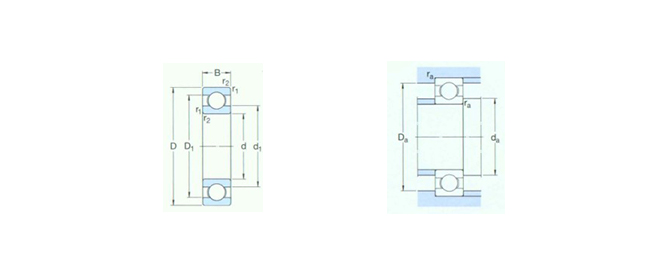

Dimensions are mm

d	70
d1 ～	82.9
D1 ～	99.9
r1,2 min	1.1

Shoulder gear and chamfer size mm

da min	76
Da max	104
ra max	1

Calculation coefficient

fo	16
