Basic size of mm

d	60
D	110
B	22

The basic rated load is kN

trends C	55.3
static state Co	36

Fatigue load limit, Pu	1.53

Rated rotation speed is r/min

Refer to the speed	17000
limit speed	4000

quality kg	0.71
model	6212-2RS1/HC5C3WT

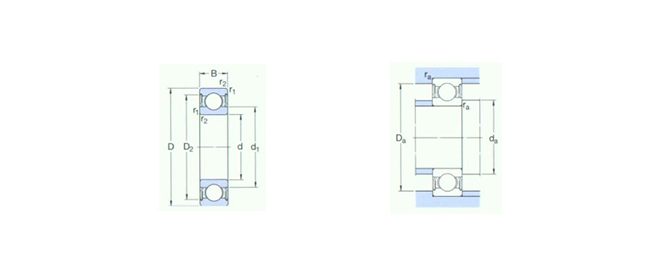

Dimensions are mm

d	60
d1 ～	75.5
D2 ～	98
r1,2 min	1.5

Shoulder gear and chamfer size mm

da min	69
Da max	101
ra max	1.5

Calculation coefficient

fo	14
