Basic size of mm

d	20
D	42
B	12

The basic rated load is kN

trends C	9.95
static state Co	5

Fatigue load limit, Pu	0.212

Rated rotation speed is r/min

Refer to the speed	48000
limit speed	32000

quality kg	0.062

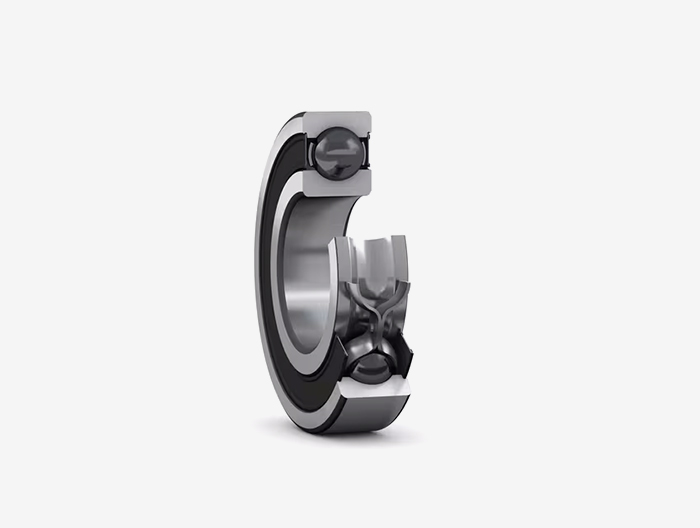

model	6004-2RSLTN9/HC5C3WT

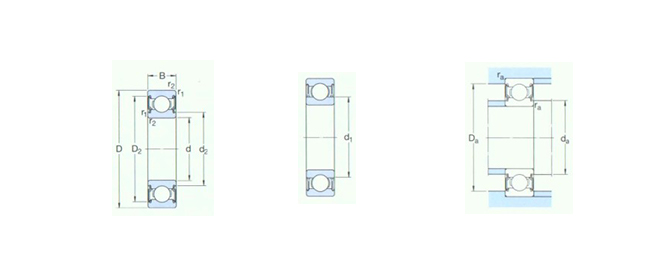

Dimensions are mm

d	20
d1 ～	-
d2 ～	24.9
D2 ～	37.2
r1,2 min	0.6

Shoulder gear and chamfer size mm

da min	23.2
da max	24.5
Da max	38.8
ra max	0.6

Calculation coefficient

fo	14
