Basic size of mm

d	750
D	1280
H	315

The basic rated load is kN

trends C	18700
static state Co	85000

Fatigue load limit, Pu	5500
The min load factor, A	690

Rated rotation speed is r/min

Refer to the speed	200
limit speed	400

quality kg	1650

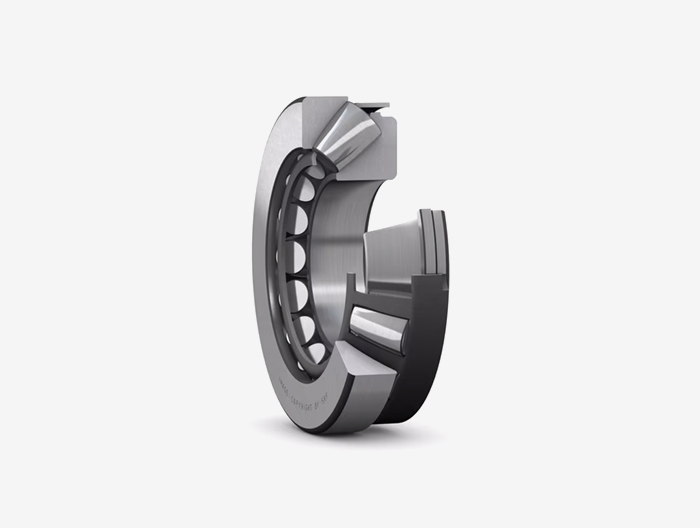

model	294/750EF

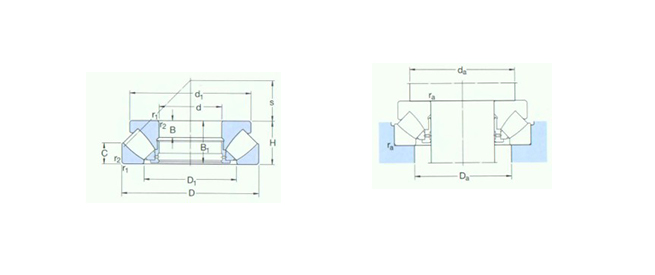

Dimensions are mm

d	750
d1 ～	1170
D1 ～	964
B	121
B1	305
C	153
r1,2 min	15
s	436

Shoulder gear and chamfer size mm

da min	1015
Da max	1120
ra max	12
