Basic size of mm

d	240
D	340
H	60

The basic rated load is kN

trends C	799
static state Co	3450

Fatigue load limit, Pu	335
The min load factor, A	1.1

Rated rotation speed is r/min

Refer to the speed	1100
limit speed	1800

quality kg	16.5
model	29248

Dimensions are mm

d	240
d1 ～	330
D1 ～	283
B	19
B1	57
C	30
r1,2 min	2.1
s	130

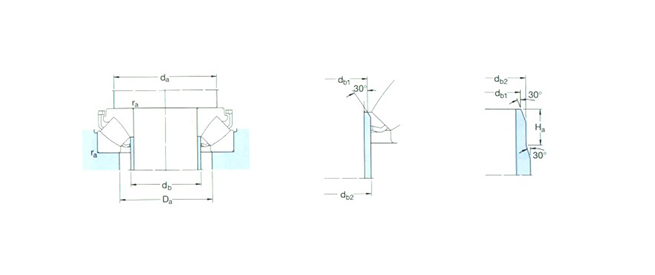

Shoulder gear and chamfer size mm

da min	290
db1 max	-
db2 max	-
Ha min	-
Da max	308
ra max	2
