Basic size of mm

d	380
D	460
H	65

The basic rated load is kN

trends C	930
static state Co	5300

Fatigue load limit, Pu	375
The min load factor, A	2.2

Rated rotation speed is r/min

Refer to the speed	360
limit speed	750

quality kg	22

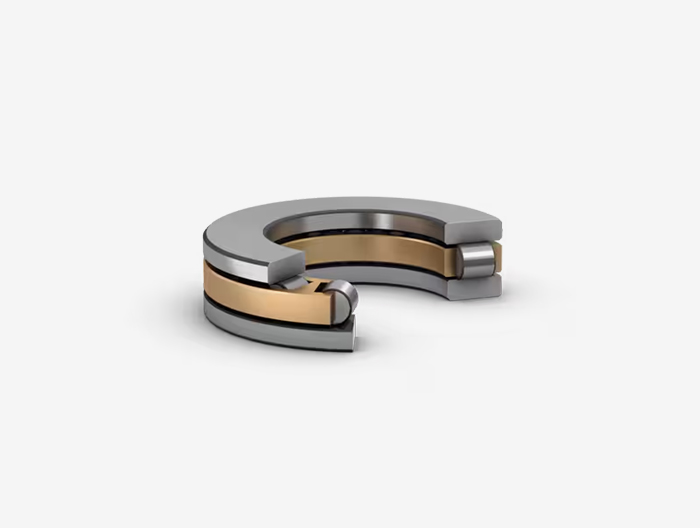

model	81176M

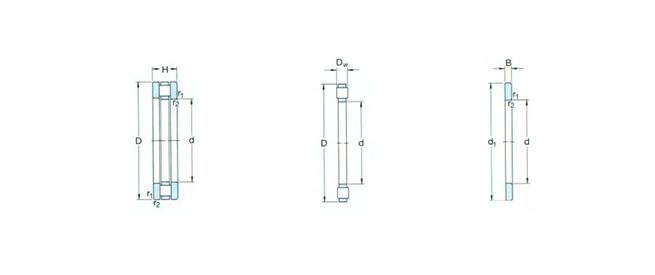

Dimensions are mm

d	380
d1 ～	456
D1 ～	384
B	20
Dw	25
r1,2 min	2

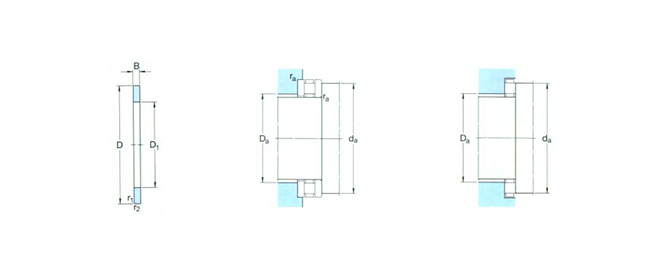

Shoulder gear and chamfer size mm

da min	453
Da max	393
ra max	2

Each component model

Cylinder roller-holder assembly	K81176M
blowout patch	WS81176
race	GS81176
