Basic size of mm

d	45
D	65
H	14

The basic rated load is kN

trends C	45
static state Co	153

Fatigue load limit, Pu	15.3
The min load factor, A	0.0019

Rated rotation speed is r/min

Refer to the speed	2200
limit speed	4500

quality kg	0.13
model	81109TN

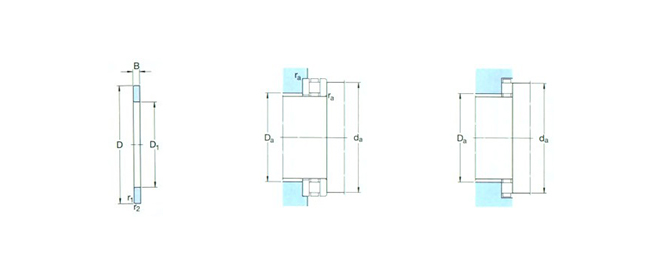

Dimensions are mm

d	45
d1 ～	65
D1 ～	47
B	4
Dw	6
r1,2 min	0.6

Shoulder gear and chamfer size mm

da min	63
Da max	47
ra max	0.6

Each component model

Cylinder roller-holder assembly	K81109TN
blowout patch	WS81109
race	GS81109
