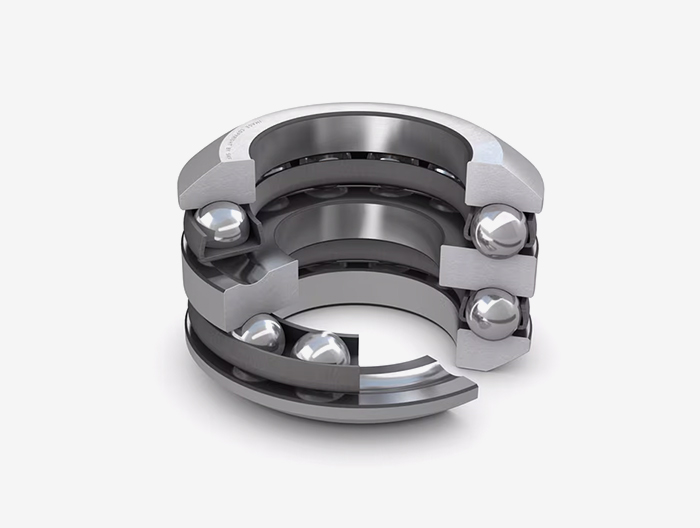

Basic size of mm

d	35
D	73
H1	45

The basic rated load is kN

trends C	39
static state Co	86.5

Fatigue load limit, Pu	3.2
The min load factor, A	0.038

Rated rotation speed is r/min

Refer to the speed	3600
limit speed	5000

Mass bearing + seat ring	0.78

model

bearing	54209
Seat washer	U209

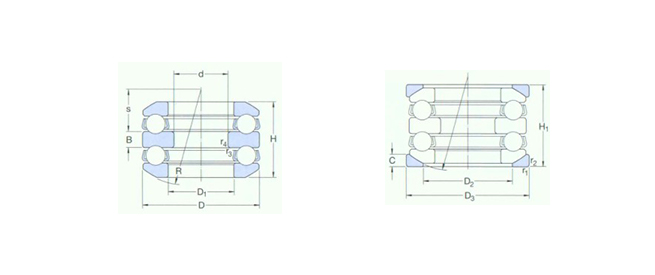

Dimensions are mm

d	35
D1 ～	47
D2	60
D3	78
H	39.6
B	9
C	7.5
R	56
s	23
r1,2 min	1
r3,4 min	0.6

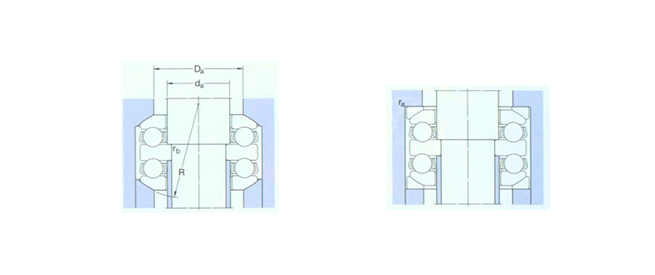

Shoulder gear and chamfer size mm

da	45
Da max	60
ra max	1
ra max	0.6
