Basic size of mm

d	100
D	170
H	68

The basic rated load is kN

trends C	140
static state Co	440

Fatigue load limit, Pu	13.4
The min load factor, A	1

Rated rotation speed is r/min

Refer to the speed	1600
limit speed	2200

quality kg	5.25
model	52224

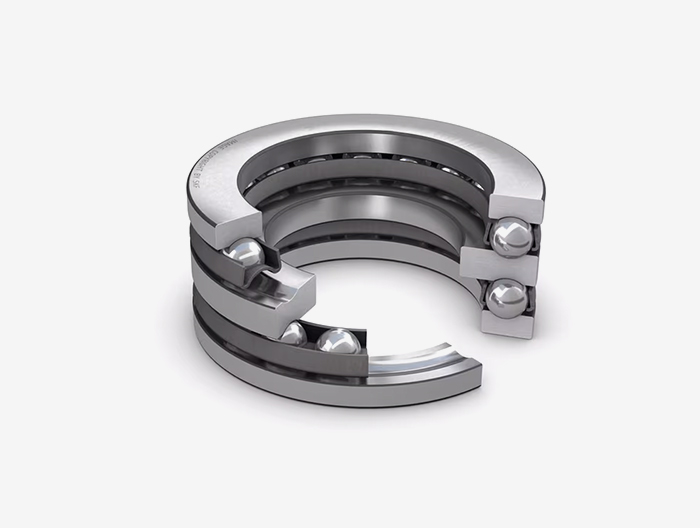

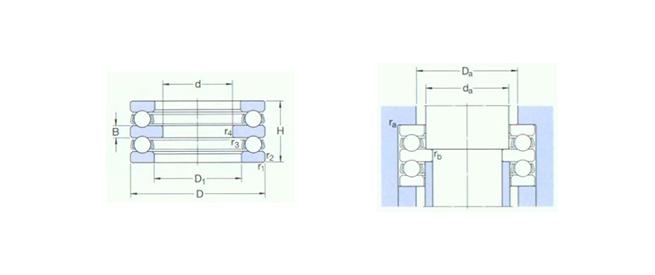

Dimensions are mm

d	100
d1 ～	123
B	15
r1,2 min	1.1
r3,4 min	1.1

Shoulder gear and chamfer size mm

da	120
Da max	140
ra max	1
rb max	1
