Basic size of mm

d	55
D	125
H	72

The basic rated load is kN

trends C	135
static state Co	320

Fatigue load limit, Pu	11.8
The min load factor, A	0.53

Rated rotation speed is r/min

Refer to the speed	1900
limit speed	2600

quality kg	3.65
model	52314

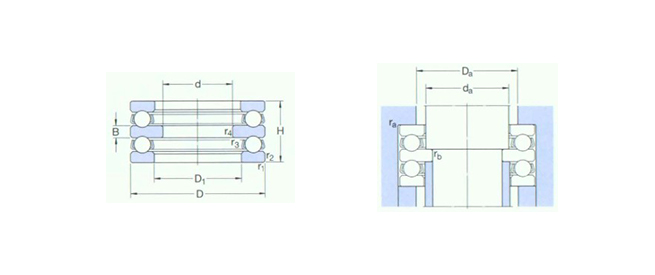

Dimensions are mm

d	55
d1 ～	72
B	16
r1,2 min	1.1
r3,4 min	1

Shoulder gear and chamfer size mm

da	70
Da max	92
ra max	1
rb max	1
