Basic size of mm

d	500
D	600
H	80

The basic rated load is kN

trends C	553
static state Co	3600

Fatigue load limit, Pu	57
The min load factor, A	67

Rated rotation speed is r/min

Refer to the speed	560
limit speed	800

quality kg	47

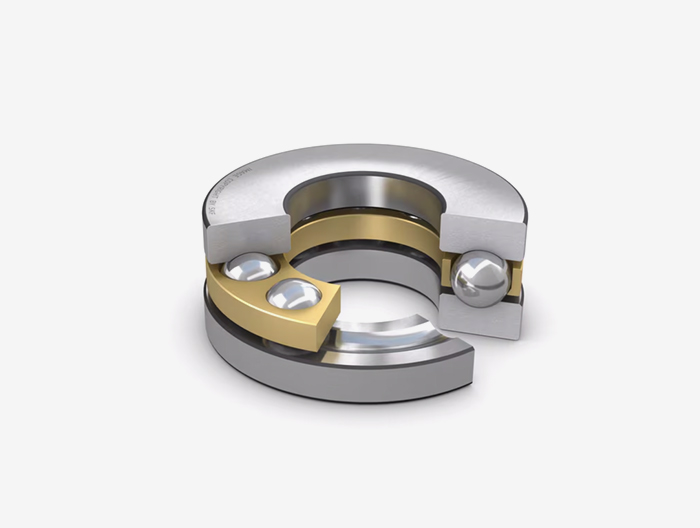

model	511/500F

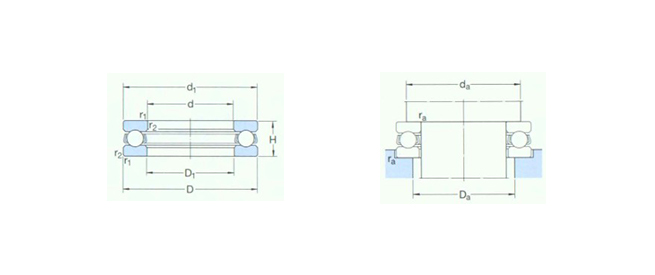

Dimensions are mm

d	500
d1 ～	596
D1 ～	504
r1,2 min	2.1

Shoulder gear and chamfer size mm

da min	559
Da max	541
ra max	2
