Basic size of mm

d1	135
D	225
B	85

The basic rated load is kN

trends C	1000
static state Co	1600

Fatigue load limit Pu	153

Rated rotation speed is r/min

Refer to the speed	-
limit speed	630

Mass bearing + return sleeve	15.5

model

bearing	*C4128K30V
withdrawal sleeve	AH24128

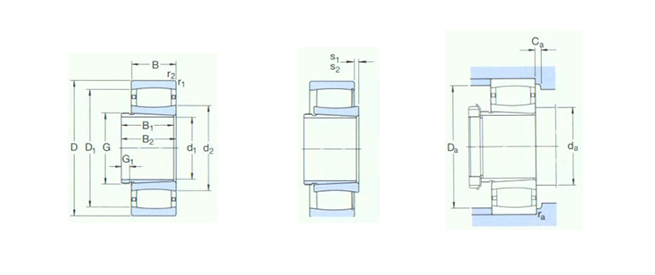

Dimensions are mm

d1	135
d2 ～	167
D1 ～	203
B1	99
B21) ~	109
G	M150×2
G1	14
r1,2 min	2.1
s11) ～	12
s21) ～	5.2

Shoulder gear and chamfer size mm

da min	151
da max	185
Da min	-
Da max	214
Ca3) min	-
ra max	2

Calculation coefficient

k1	0.111
k2	0.097
