CARB ring roller bearing C4038-2CS5V1

Model:C4038-2CS5V1

Brand:SKF

CARB ring roller bearing C4038-2CS5V1 d=190、D=290、B=100,For more information, please contact the Us, where we can provide you with the right solution.
WhatsApp/WeChat:+86-13485059519

tbjbearing@gmail.com
We can deliver to all countries

Attribute

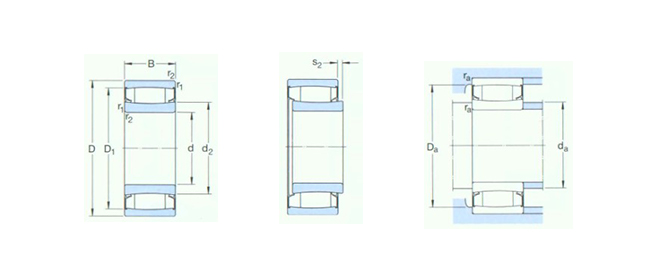

Technical Drawing
Param Print

Basic size of mm

d 190
D 290
B 100

The basic rated load is kN

trends C 1370
static state Co 2320

Fatigue load limit
Pu		 204
limit speed 48
quality 24.5
model *C4038-2CS5V1)

Dimensions are mm

d 190
d2
～		 221
D1
～		 263
r1,2
min		 2.1
s11)
～		 6.4

Shoulder gear and chamfer size mm

da
min		 200
da
max		 219
Da
max		 280
ra
max		 2

Calculation coefficient

k1 0.103
k2 0.106
