Basic size of mm

d	85
D	120
B	35

The basic rated load is kN

trends C	224
static state Co	355

Fatigue load limit Pu	40.5

Rated rotation speed is r/min

Refer to the speed	-
limit speed	2000

quality	1.3

model

Bearing cylindrical hole	*C4917V1)
conical bore	*C4917K30V1)

Dimensions are mm

d	85
d2 ～	94.5
D1 ～	109
r1,2 min	1.1
s11) ～	6
s21) ～	1.7

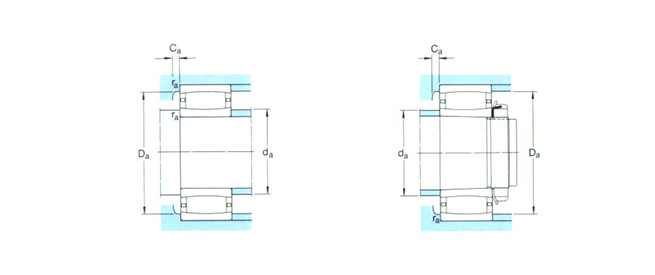

Shoulder gear and chamfer size mm

da min	91
da max	94
Da min	-
Da max	114
Ca2) max	-
ra max	1

Calculation coefficient

k1	0.1
k2	0.114
