Basic size of mm

d1	150
D	240
B	80

The basic rated load is kN

trends C	750
static state Co	1200

Fatigue load limit Pu	114

Rated rotation speed is r/min

Refer to the speed	1700
limit speed	2400

Mass bearing + return sleeve	14.8

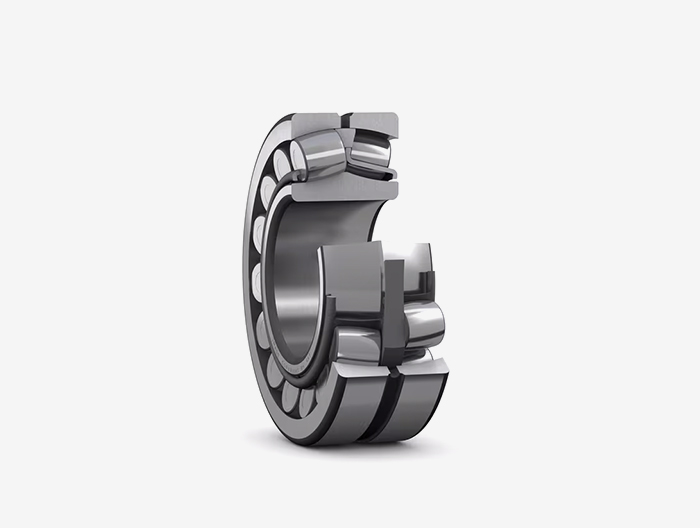

model

bearing	*24032CCK30/W33
withdrawal sleeve	AH24032

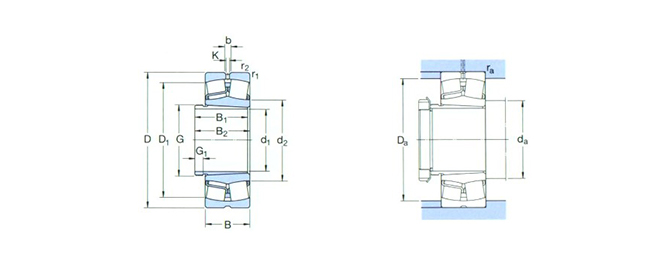

Dimensions are mm

d1	150
d2 ～	176
D1 ～	211
B1	95
B21)	106
G	M170×3
G1	15
b	8.3
k	4.5
r1,2 min	2.1

Shoulder gear and chamfer size mm

da max	171
Da max	229
ra max	2

Calculation coefficient

e	0.3
Y1	2.3
Y2	3.4
Yo	2.2
