Basic size of mm

d	200
D	340
B	140

The basic rated load is kN

trends C	1800
static state Co	2800

Fatigue load limit Pu	232
limit speed	320
quality	53.5
model	*24140-2CS

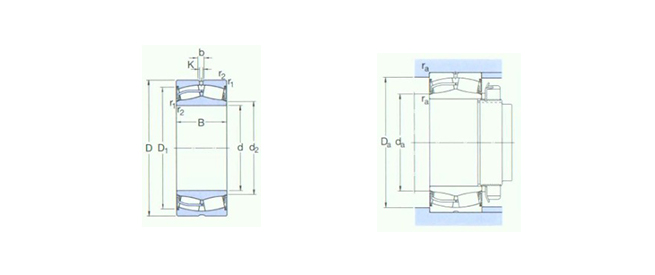

Dimensions are mm

d	200
d2 ～	221
D1 ～	294
b	11.1
k	6
r1,2 min	3

Shoulder gear and chamfer size mm

da min	214
da max	221
Da max	326
ra max	2.5

Calculation coefficient

e	0.4
Y1	1.7
Y2	2.5
Y0	1.6
