Basic size of mm

d	150
D	270
B	96

The basic rated load is kN

trends C	1080
static state Co	1460

Fatigue load limit Pu	137

Rated rotation speed is r/min

Refer to the speed	1600
limit speed	2200

quality	24.5

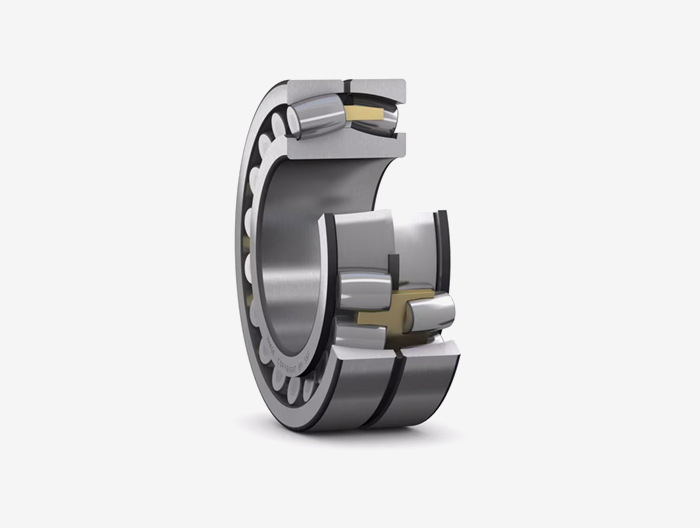

model

Column hole	*23230CC/W33
conical bore	*23230CCK/W33

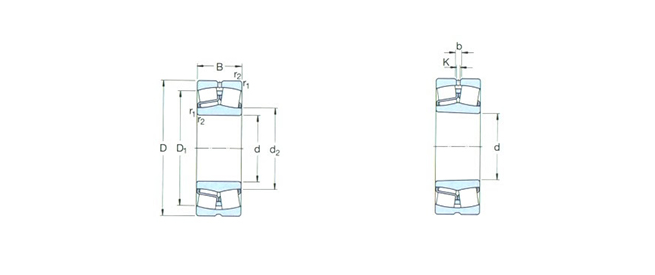

Dimensions are mm

d	150
d2 ～	175
D1 ～	228
b	11.1
k	6
r1,2 min	3

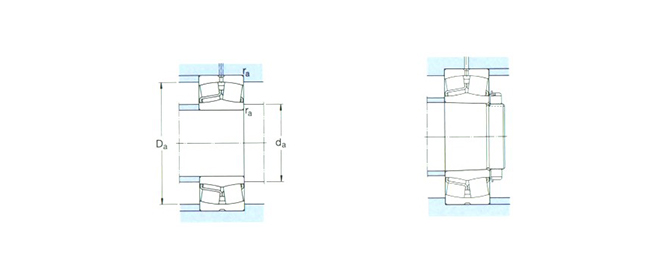

Shoulder gear and chamfer size mm

da min	164
Da max	256
ra max	2.5

Calculation coefficient

e	0.35
Y1	1.9
Y2	2.9
Y0	1.8
